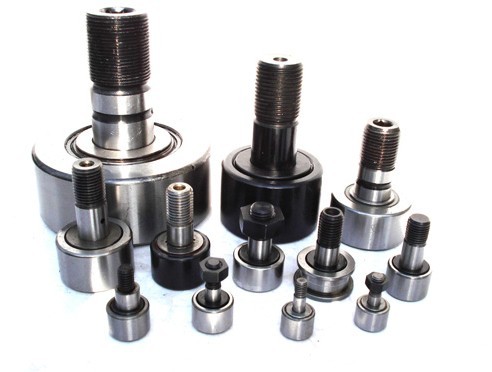

Prodcut Name:CR...VBR, CR...VB, CR...VBUUR, CR...VBUU, CR...UU

Code: 1368683827 Price:0

Product Description

Shaft	Bearing Model				Overall dimensionsmm
	Basic type		Sealed		Overall dimensionsmm
mm	SphericalDiameter	CylindricalDiameter	SphericalDiameter	CylindricalDiameter	d1	D	C	B
4.826	CR 8VBR	CR 8VB	CR 5VBUUR	CR 8VBUU	4.826	12.7	8.731	9.525
4.826	CR 8-1VBR	CR 8-1VB	CR 8-1VBUUR	CR 8-1VBUU	4.826	12.7	9.525	10.319
6.35	CR 10VBR	CR 10VB	CR 10VBUUR	CR 10VBUU	6.35	15.875	10.319	11.112
6.35	CR 10-1VBR	CR 10-1VB	CR 10-1VBUUR	CR 10-1VBUU	6.35	15.875	11.112	11.906
9.525	CR 12VBR	CR 12VB	CR 12VBUUR	CR 12VBUU	9.525	19.05	12.7	13.494
9.525	CR 14VBR	CR 14VB	CR 14VBUUR	CR 14VBUU	9.525	22.225	12.7	13.494
11.112	CR 16VBR	CR 16VB	CR 16VBUUR	CR 16VBUU	11.112	25.4	15.875	16.669
11.112	CR 18VBR	CR 18VB	CR 18VBUUR	CR 18VBUU	11.112	28.575	15.875	16.669
12.7	CR 20VBR	CR 20VB	CR 20VBUUR	CR 20VBUU	12.7	31.75	19.05	19.844
12.7	CR 22VBR	CR 22VB	CR 22VBUUR	CR 22VBUU	12.7	34.925	19.05	19.844
15.875	CR 24VBR	CR 24VB	CR 24VBUUR	CR 24VBUU	15.875	38.1	22.225	23.019
15.875	CR 26VBR	CR 26VB	CR 26VBUUR	CR 26VBUU	15.875	41.275	22.225	23.019
19.05	CR 28VBR	CR 28VB	CR 28VBUUR	CR 28VBUU	19.05	44.45	25.4	26.194
19.05	CR 30VBR	CR 30VB	CR 30VBUUR	CR 30VBUU	19.05	47.625	25.4	26.194
22.225	CR 32VBR	CR 32VB	CR 32VBUUR	CR 32VBUU	22.225	50.8	31.75	32.544
22.225	CR 36VBR	CR 36VB	CR 36VBUUR	CR 36VBUU	22.225	57.15	31.75	32.544
