Prodcut Name:LMEF LMEK Series

Code: 1368506445 Price:0

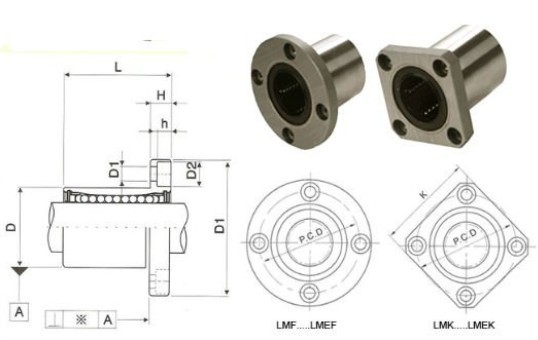

Linear bearing Flange type Europe Metric -LMEF…LMEK…LMEH (KBF…KBK…KBH)
Bearing No.					Main Dimension (mm)			Flange Dimension (mm)
Round flange		Mass	square	Mass	dr	D	L	Df
		(g)		(g)	mm	mm	mm	mm
KBF8GUU	LMEF8UU	41	LMEK8UU	33	8	16	25	32
KBF12GUU	LMEF12UU	80	LMEK12UU	64	12	22	32	42
KBF16GUU	LMEF16UU	103	LMEK16UU	90	16	26	36	46
KBF20GUU	LMEF20UU	182	LMEK20UU	147	20	32	45	54
KBF25GUU	LMEF25UU	335	LMEK25UU	295	25	40	58	62
KBF30GUU	LMEF30UU	560	LMEK30UU	465	30	47	68	76
KBF40GUU	LMEF40UU	1175	LMEK40UU	975	40	62	80	98
KBF50GUU	LMEF50UU	1745	LMEK50UU	1545	50	75	100	112
KBF60GUU	LMEF60UU	3220	LMEK60UU	2780	60	90	125	134
KBF80GUU	LMEF80UU	6420	LMEK80UU	5920	80	120	165	164
