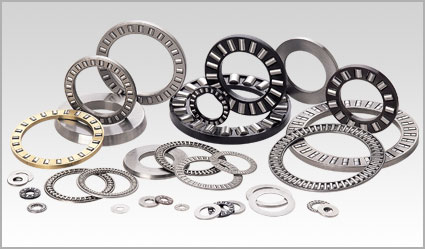

Prodcut Name:TC TRA TRB TRC TRD

Code: 1368604495 Price:0

Product Description

structure

Shaft
Diameter

Bearing Designation

Boundary Dimensions

Basic Load Rating

Limiting Speed

TRA
TRB
TRC
TRD

dw /d

Dg/D

Dw

Dynamic

Static

Oil

mm

inch

mm

inch

mm

inch

mm

N

rpm

¹/₄	TC411	0.250	6.35	0.687	17.45	0.0781	1.984	1370	3000	16000	411
⁵/₁₆	TC512	0.312	7.49	0.750	19.05	0.0781	1.984	1560	3650	15000	512
³/₈	TC613	0.375	9.52	0.812	20.62	0.0781	1.984	1620	4000	15000	613
¹/₂	TC815	0.500	12.70	0.937	23.80	0.0781	1.984	1920	5300	13000	815
⁵/₈	TCl018	0.625	15.88	1.125	28.58	0.0781	1.984	2170	6600	11000	1018
³/₄	TCl220	0.750	19.05	1.250	31.75	0.0781	1.984	2410	8000	9500	1220
⁷/₈	TCl423	0.875	22.22	1.437	36.50	0.0781	1.984	2900	10500	8500	1423
⁷/₈	TCl427	0.875	22.22	1.687	42.85	0.0781	1.984	4400	18600	7500	1427
1	TCl525	1.000	25.40	1.562	39.67	0.0781	1.984	3150	12100	7500	1525
1¹/₈	TCl828	1.125	28.58	1.750	44.45	0.0781	1.984	3850	16300	6500	1828
1³/₁₆	TCl931	1.188	30.16	1.937	49.20	0.0781	1.984	4500	20500	6000	1931
1¹/₄	TC2013	1.250	31.75	1.937	49.20	0.0781	1.984	4500	20500	6000	2013
1³/₈	TC2233	1.375	34.92	2.062	52.37	0.0781	1.984	4600	21600	5500	2233
1¹/₂	TC2435	1.500	38.10	2.187	55.55	0.0781	1.984	4850	23700	5000	2435
1³/₄	TC2840	1.750	44.45	2.500	63.50	0.0781	1.984	5600	30000	4500	2840
2	TC3244	2.000	50.80	2.750	69.85	0.0781	1.984	5800	32500	4000	3244
2¹/₄	TC3648	2.250	57.15	3.000	76.20	0.0781	1.984	6000	35000	3600	3648
2¹/₂	TC4052	2.500	63.50	3.250	82.55	0.0781	1.984	6200	37500	3300	4052
3	TC4860	3.000	76.20	3.750	95.25	0.0781	1.984	6600	42500	2800	4860
3¹/₄	TC5266	3.250	82.55	4.125	104.78	0.1250	3.175	10900	61000	2600	5266
4¹/₈	TC6681	4.125	104.78	6.062	128.57	0.1250	3.175	14200	92000	2100	6681
