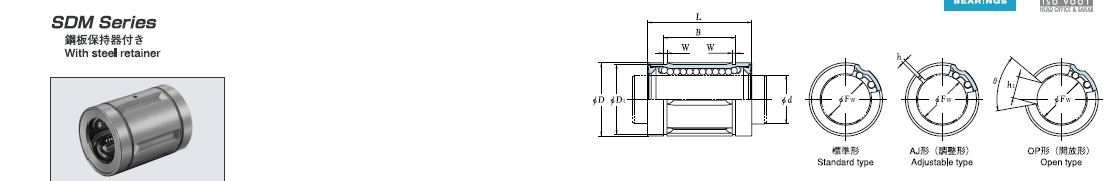

Prodcut Name:SDM series

Code: 1368505906 Price:0

Shaft Diameter d mm	Standard		Adjustable		Open Type		Main Dimension(mm)
	Type	Lines Of Friction Balls	Type	Lines Of Friction Balls	Type	Lines Of Friction Balls	Dimension oF Inscribing Circle			Outside Dimension
								Permissible Tolerance μ m		D	Permissible Tolerance μ m
								Precision	normal	D	Permissible Tolerance μ m
6	SDM6	3	-	-	-	-	6	0 -6	0 -9	12	0 -11
8	SDM8S	3	-	-	-	-	8			15
8	SDM8	3	-	-	-	-	8			15
10	SDM10	4	SDM10AJ	4	SDM10OP	3	10			19
12	SDM12	4	SDM12AJ	4	SDM12OP	3	12			21	0 -13
13	SDM13	4	SDM13AJ	4	SDM13OP	3	13			23
16	SDM16	4	SDM16AJ	4	SDM16OP	3	16			28
20	SDM20	5	SDM20AJ	5	SDM20OP	4	20	0 -7	0 -10	32	0 -16
25	SDM25	6	SDM25AJ	6	SDM25OP	5	25			40
30	SDM30	6	SDM30AJ	6	SDM30OP	5	30			45
35	SDM35	6	SDM35AJ	6	SDM35OP	5	35	0 -8	0 -12	52	0 -19
40	SDM40	6	SDM40AJ	6	SDM40OP	5	40			60
50	SDM50	6	SDM50AJ	6	SDM50OP	5	50			80
60	SDM60	6	SDM60AJ	6	SDM60OP	5	60	0 -9	0 -15	90	0 -22
80	SDM80	6	SDM80AJ	6	SDM80OP	5	80	0 -9	0 -15	120	0 -22
100	SDM100	6	SDM100AJ	6	SDM100OP	5	100	0 -10 0 -13	0 -20 0 -25	150	0 -25 0 -29
120 150	SDM120 SDM150	8 8	SDM120AJ SDM150AJ	8 8	SDM120OP SDM150OP	6 6	120 150	0 -10 0 -13	0 -20 0 -25	180 210	0 -25 0 -29

Main Dimension(mm)								θ	Eccentricity(max) μ m		Rated Load kgf		Diameter of feeding oil hofe mm	Weight Standard type g	Shaft diameter d mm
L	Permissible Tolerance μ m	B	Permissible Tolerance μ m	W	D₁	h	h₁	θ	Percision	Normal	Dyn C	Stat C	Diameter of feeding oil hofe mm	Weight Standard type g	Shaft diameter d mm
19	0 -200	13.5	0 -200	1.1	11.5	1	-	-	8	12	206	265	-	7	6
17		11.5		1.1	14.3	1	-	-			176	216	-	10	8
24		17.5		1.1	14.3	1	-	-			274	392	-	14	8
29		22		1.3	18	1	6.8	80 0			372	549	2.0	27	10
30		23		1.3	20	1.5	7.5	80 0			510	784	2.0	32	12
32		23		1.3	22	1.5	9	80 0			510	784	2.0	37	13
37		26.5		1.6	27	1.5	11	80 0			774	1180	2.3	58	16
42		30.5		1.6	30.5	1.5	11	60 0	10	15	882	1370	2.3	79	20
59	0 -300	41	0 -300	1.85	38	2	13	50 0			980	1570	3.0	203	25
64		44.5		1.85	43	2.5	15	50 0			1570	2740	3.0	228	30
70		49.5		2.1	49	2.5	17	50 0	12	20	1670	3140	3.0	355	35
80		60.5		2.1	57	3	20	50 0			2160	4020	3.0	546	40
100		74		2.6	76.5	3	25	50 0			3820	7940	4.0	1420	50
110		85		3.15	86.5	3	30	50 0	17	25	4700	10000	4.0	1650	60
140	0 -400	105.5	0 -400	4.15	116	3	40	50 0	17	25	7350	16000	4.0	3700	80
175		125.5		4.15	145	3	50	80 0	20 25	30 40	14100	34800	4.0	7200	100
200 240		158.6 170.6		4.15 5.15	175 204	3 3	85 105	80 0	20 25	30 40	16400 21100	40000 54300		11600 15700	120 150
