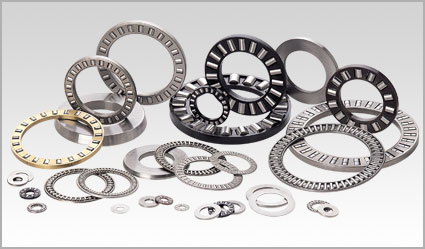

Prodcut Name:AXK Series

Code: 1368604142 Price:0

Product Description

structure

Shaft
Diameter

Axial Needle Roller and Cage Assemblies

Thrust bearing washer

Dimension

Track size

Basic Load Rating
KN

Limiting
Speed
r/min

Code

Mass
g

mm

Bearing washer

Mass
g

Shaft Ring

Seat Ring

Axial Bearing Washer

Mass
g

Dcl
d

D1

Dc
D

d1

Dw

B1

B

a
r min

Eb

Ea

C

CO

4	AXK0414TN	0.7	AS0414	1	—	—	—	—	4	—	14	—	2	1	—	—	5	13	4.4	8	21000
5	AXK0515TN	0.8	AS0515	1	—	—	—	—	5	—	15	—	2	1	—	—	6	14	4.75	9.2	21000
6	AXK0619TN	1	AS0619	2	LS0619	—	—	4	6	—	19	—	2	1	2.75	0.3	7	18	6.8	15.5	19000
8	AXK0821TN	2	AS0821	2	LS0821	—	—	4	8	—	21	—	2	1	2.75	0.3	9	20	7.8	19.4	18000
10	AXK1024	3	AS1024	3	LS1024	—	—	7	10	—	24	—	2	1	2.75	0.3	12	23	9.2	25.5	17000
12	AXK1226	3	AS1226	3	LS1226	—	—	8	12	—	26	—	2	1	2.75	0.3	14	25	9.9	29	15000
15	AXK1528	4	AS1528	3	LS1528	GS81102	WS81102	9	15	16	28	28	2	1	2.75	0.3	17	27	11.3	36	13000
17	AXK1730	4	AS1730	4	LS1730	GS81103	WS81103	9	17	18	30	30	2	1	2.75	0.3	19	29	11.9	39.5	12000
20	AXK2035	5	AS2035	5	LS2035	GS81104	WS81104	13	20	21	35	35	2	1	2.75	0.3	22	34	13.1	46.5	10000
25	AXK2542	7	AS2542	7	LS2542	GS81105	WS81105	19	25	26	42	42	2	1	3	0.6	29	41	14.7	58	8500
30	AXK3047	8	AS3047	8	LS3047	GS81106	WS81106	22	30	32	47	47	2	1	3	0.6	34	46	16.3	70	7500
35	AXK3552	10	AS3552	9	LS3552	GS81107	WS81107	29	35	37	52	52	2	1	3.5	0.6	39	51	17.8	81	6500
40	AXK4060	16	AS4060	12	LS4060	GS81108	WS81108	40	40	42	60	60	3	1	3.5	0.6	45	58	28	114	6000
45	AXK4565	18	AS4565	13	LS4565	GS81109	WS81109	50	45	47	65	65	3	1	4	0.6	50	63	30	128	5000
50	AXK5070	20	AS5070	14	LS5070	GS81110	WS81110	55	50	52	70	70	3	1	4	0.6	55	68	32	143	4800
55	AXK5578	28	AS5578	18	LS5578	GS81111	WS81111	88	55	57	78	78	3	1	5	0.6	60	76	38	186	4300
60	AXK6085	33	AS6085	22	LS6085	GS81112	WS81112	97	60	62	85	85	3	1	4.75	1	65	83	44.5	234	4000
65	AXK6590	35	AS6590	24	LS6590	GS81113	WS81113	115	65	67	90	90	3	1	5.25	1	70	88	46.5	255	3700
70	AXK7095	60	AS7095	25	LS7095	GS81114	WS81114	123	70	72	95	95	4	1	5.25	1	74	93	54	255	3500
75	AXK75100	61	AS75100	27	LS75100	GS81115	WS81115	142	75	77	100	100	4	1	5.75	1	79	98	55	265	3300
80	AXK80105	63	AS80105	28	LS80105	GS81116	WS81116	151	80	82	105	105	4	1	5.75	1	84	103	56	280	3100
85	AXK85110	67	AS85100	29	LS85110	GS81117	WS81117	159	85	87	110	110	4	1	5.75	1	89	108	58	290	3000
90	AXK90120	86	AS90120	39	LS90120	GS81118	WS81118	234	90	92	120	120	4	1	6.5	1	94	118	73	405	2700
100	AXK100135	104	AS100135	50	LS100135	GS81120	WS81120	350	100	102	135	135	4	1	7	1	105	133	91	560	2500
110	AXK110145	122	AS110145	55	LS110145	GS81122	WS81122	385	110	112	145	145	4	1	7	1	115	143	97	620	2300
120	AXK120155	131	AS120155	59	LS120155	GS81124	WS81124	415	120	122	155	155	4	1	7	1	125	153	102	680	2100
130	AXK130170	205	AS130170	65	LS130170	GS81126	WS81126	663	130	132	170	170	5	1	9	1	136	167	133	840	1900
140	AXK140180	219	AS140180	79	LS140180	GS81128	WS81128	749	140	142	180	178	5	1	9.5	1	146	177	138	900	1800
150	AXK150190	232	AS150190	84	LS150190	GS81130	WS81130	796	150	152	190	188	5	1	9.5	1	156	187	143	960	1700
160	AXK160200	246	AS160200	89	LS160200	GS81132	WS81132	842	160	162	200	198	5	1	9.5	1	166	197	145	1020	1600
