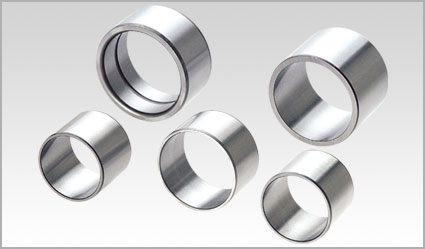

Prodcut Name:IR LR Series

Code: 1368603711 Price:0

Product Description

Shaft Diameter	Bearing Designation	Mass Approx	Boundary Dimensions
			d	F	B
mm		g	mm

5	lR5X8X12	2.79	5	8	12
5	lR5X8X16	3.75	5	8	16
6	lR6X9X12	3.17	6	9	12
	lR6X9X16	4.3	6	9	16
	lR6X10X10	3.7	6	10	10
	• lR6X10X12	4.6	6	10	12
7	lR7X10X10.5	3.09	7	10	10.5
	lR7X10X12	3.61	7	10	12
	lR7X10X15.5		7	10	15.5
	lR7X10X16	4.9	7	10	16
7.8	lR06X12X10.5C		7.8	12.2	10.7
8	lR8X12X10	4.8	8	12	10
	lR/LR8X12X10.5	5	8	12	10.5
	lR8X12X12	5.7	8	12	12
	lR/LR8X12X12.5	5.9	8	12	12.5
	lR8X12X15.5		8	12	15.5
	lR8X12X16		8	12	16
	lR8X12X5.5		8	12	5.5
	lR8X13X39		8	13	39
9	lR9X12X7		9	12	7
	lR9X12X12	4.5	9	12	12
	lR9X12X12.5		9	12	12.5
	lR9X12X16	6.1	9	12	16
	lR9X16X16		9	16	16
10	IR10X13X12		10	13	12
	lR/IR10X13X12.5	5.2	10	13	12.5
	IR10X14X10.5		10	14	10.5
	• IR10X14X12	7.3	10	14	12
	IR10X14X13	7.4	10	14	13
	• IR10X14X14	8	10	14	14
	IR10X14X16	9.2	10	14	16
	IR10X14X16.5		10	14	16.5
	IR10X14X20	11.6	10	14	20
	IR10X14X20.5		10	14	20.5
	IR10X15X13		10	15	13
	IR10X15X13.5		10	15	13.5
	IR10X15X20.5		10	15	20.5
	IR10X15X25.5		10	15	25.5
14	2R10X16X14		10	16	14
10	IR10X16X15		10	16	15
	IR10X16X16		10	16	16
	IR10X17X15		10	17	15
	IR10X20X20.5		10	20	20.5
	IR10X20X30.5		10	20	30.5
12	IR12X14X15.5		12	14	15.5
	IR12X15X12	5.8	12	15	12
	lR/IR12X15X12.5	6.1	12	15	12.5
	IR12X15X16	8	12	15	16
	lR/IR12X15X16.5	8.1	12	15	16.5
	lR/IR12X15X22.5	11	12	15	22.5
	IR12X15X16.5		12	15	16.5
	lR12X15X16		12	15	16
	IR12X15X19		12	15	19
	IR12X15X22.5		12	15	22.5
	• IR12X16X12	7.9	12	16	12
	IR12X16X12		12	16	12
	IR12X16X12.5		12	16	12.5
	IR12X16X13	8.7	12	16	13
	• IR12X16X14	9.5	12	16	14
	IR12X16X14.5		12	16	14.5
	IR12X16X15		12	16	15
	IR12X16X16	11	12	16	16
	• IR12X16X16		12	16	16
	IR12X16X16.5		12	16	16.5
	IR12X16X17		12	16	17
	IR12X16X20	13.5	12	16	20
	IR12X16X20.5		12	16	20.5
	IR12X16X22		12	16	22
	IR12X16X22.5		12	16	22.5
	IR12X16X23.5		12	16	23.5
	IR12X17X15.5		12	17	15.5
	IR12X17X20		12	17	20
	IR12X17X20.5		12	17	20.5
	IR12X17X22.5		12	17	22.5
	IR12X17X25.5		12	17	25.5
13	IR13X16X20.5		13	16	20.5
14	IR14X16X16		14	16	16
	IR14X17X17	10	14	17	17
	IRl4X25X30		14	25	30
15	IRl5X18X12.5	7.2	15	18	12.5
	IRl5X18X15.5		15	18	15.5
	IRl5X18X16	9.6	15	18	16
	IRl5X18X16.5	9.9	15	18	16.5
	IRl5X18X17.5		15	18	17.5
	IRl5X18X20.5		15	18	20.5
	IRl5X199X10		15	19	10
	IRl5X19X13.5		15	19	13.5
	IRl5X19X16	12.8	15	19	16
	IRl5X19X16.5		15	19	16.5
	IRl5X19X20	16.4	15	19	20
	IRl5X19X20.5		15	19	20.5
	• IRl5X20X12	12.1	15	20	12
	IRl5X20X13	13.5	15	20	13
	• IRl5X20X14	14.7	15	20	14
	IRl5X20x14		15	20	14
	IRl5X20X15		15	20	15
	IRl5X20X15.5		15	20	15.5
	IRl5X20X16		15	20	16
	IRl5X20X18		15	20	18
	IRl5X20X20		15	20	20
	IR15X20X20.5		15	20	20.5
	IRl5X20X23	24.4	15	20	23
	IR15X20X25.5		15	20	25.5
	IR15X20X30.5		15	20	30.5
16	IRl6X20X14		16	20	14
	IRl6X20X16		16	20	16
	IRl6X20X20		16	20	20
	IRl6X20X32		16	20	32
	IRl6X24X20		16	24	20
17	IRl7X20X16	10.7	17	20	16
	IRl7X20X16.5	11.1	17	20	16.5
	IRl7X20X20	13.5	17	20	20
	IR17X20X20.5	13.8	17	20	20.5
	IRl7X20X30		17	20	30
	IR17X20X30.5	20.6	17	20	30.5
	IRl7X21X16	14.3	17	21	16
	IRl7X21X16.5		17	21	16.5
	IRl7X21X20	18	17	21	20
	IRl7X21X20.5		17	21	20.5
	IRl7X22X13	14.9	17	22	13
	• IRl7X22X14	16.4	17	22	14
	IRl7X22X15.5		17	22	15.5
	IRl7X22X16	18.7	17	22	16
	IR17X22X20.5		17	22	20.5
	IRl7X22X23	27.1	17	22	23
	IRl7X22X26		17	22	26
	IRl7X22X32		17	22	32
	IRl7X22X20	33.6	17	24	20
18	IRl8X22X17.8		18	22	17.8
18	IRl8X22X19		18	22	19
20	IR20X24X16	16.5	20	24	16
	IR20X24X16.5		20	24	16.5
	IR20X24X28.5		20	24	28.5
	IR20X25X10.5		20	25	10.5
	IR20X25X12.5	20	20	25	12.5
	IR20X25X15.5		20	25	15.5
	IR20X25X17	22.4	20	25	17
	IR20X25X18	24.3	20	25	18
	IR20X25X20	27.5	20	25	20
	IR20X25X20.5	28.2	20	25	20.5
	IR20X25X23		20	25	23
	IR20X25X25		20	25	25
	IR20X25X25.5		20	25	25.5
	IR20X25X26		20	25	26
	IR20X25X26.5	36.1	20	25	26.5
	IR20X25X30	40.9	20	25	30
	IR20X25X30.5		20	25	30.5
	IR20X25X32		20	25	32
	IR20X25X32A		20	25	32
	IR20X25X320H		20	25	32
	IR20X25X38.5	52.5	20	25	38.5
	IR20X26X16		20	26	16
	IR20X26X20		20	26	20
	IR20X28X20	45.2	20	28	20
	IR20X30X30		20	30	30
22	IR22X26X20	23.2	22	26	20
	IR22X26X16	17.5	22	26	16
	IR22X26X20.5		22	26.5	20.5
	IR22X28X17	29.8	22	28	17
	IR22X28X20	35	22	28	20
	IR22X28X20.5	36	22	28	20.5
	IR22X28X30		22	28	30
	IR22X28X30.5		22	28	30.5
	IR22X28X20.5		22	28	20.5
	IR22X28X30		22	28	30
	IR22X31.5X19.8		22	31.5	19.8
	IR22X32X20		22	32	20
25	IR25X29X20	25.5	25	29	20
	IR25X29X20.5		25	29	20.5
	IR25X29X30	39.3	25	29	30
	IR25X29X30.5		25	29	30.5
	IR25X29X40		25	29	40
	IR25X30X12.5		25	30	12.5
	IR25X30X15.5	20	25	30	15.5
	• IR25X30X16	26	25	30	16
	IR25X30X16		25	30	16
	IR25X30X16.5	26.7	25	30	16.5
	IR25X30X16		25	30	16
	• IR25X30X17	27.5	25	30	17
	IR25X30X18	29.8	25	30	18
	IR25X30X20	32.6	25	30	20
	IR25X30X20.5	33.5	25	30	20.5
	IR25X30X22		25	30	22
	IR25X30X25.5		25	30	25.5
	IR25X30X26		25	30	26
	IR25X30X26.5	43.3	25	30	26.5
	IR25X30X30	50.1	25	30	30
	IR25X30X30.5		25	30	30.5
	IR25X30X32	53	25	30	32
	IR25X30X32.5		25	30	32.5
	IR25X30X38		25	30	38
	IR25X30X38.5	63.8	25	30	38.5
	IR25X32X22	51.7	25	30	22
28	IR28X32X17	24.5	28	32	17
	IR28X32X20	28.4	28	32	20
	IR28X32X23		28	32	23
	IR28X32X30	43.8	28	32	30
	IR28X32X30.5		28	32	30.5
	IR28X32X47		28	32	47
29	IR29X32X13	14.8	29	32	13
29	IR29X35X26		29	35	26

Shaft Diameter	Bearing Designation	Mass Approx	Boundary Dimensions
			d	F	B
mm		g	mm

30	IR30X35X12.5	23.3	30	35	12.5
	IR30X35X13	25	30	35	13
	IR30X35X15.5		30	35	15.5
	IR30X35X16	30.8	30	35	16
	IR30X35X17	32.3	30	35	17
	• IR30X35X18	35.3	30	35	18
	IR30X35X20	40	30	35	20
	IR30X35X20.5	40.7	30	35	20.5
	IR30X35X25.5		30	35	25.5
	IR30X35X26	50.3	30	35	26
	IR30X35X30	58.9	30	35	30
	IR30X35X30.5		30	35	30.5
	IR30X35X32		30	35	32
	IR30X37X18	50	30	37	18
	IR30X37X22	60.8	30	37	22
	IR30X37X22A		30	37	22.1
	• IR30X38X20	64.8	30	38	20
	IR30X38X20A		30	38	20
	IR30X38X20ASl		30	38	20
	IR30X40X17		30	40	17
32	IR32X34X20.5		32	34	20.5
	IR32X37X20	42	32	37	20
	IR32X37X20.5		32	37	20.5
	IR32X37X30	62.7	32	37	30
	IR32X38X20.5		32	38	20.5
	IR32X38X30.5		32	38	30.5
	IR32X40X20	68	32	40	20
	IR32X40X36	124	32	40	36
	IR32X40X36A1		32	40	36
33	IR33X37X13	21.9	33	37	13
34	IR34X42X20		34	42	20
35	IR35X40X12.5	27.2	35	40	12.5
	IR35X40X15		35	40	15
	IR35X40X15.5		35	40	15.5
	IR35X40X16.5	37.4	35	40	16.5
	IR35X40X17	38.3	35	40	17
	IR35X40X20	44.4	35	40	20
	IR35X40X20.5	46.1	35	40	20.5
	IR35X40X21		35	40	21
	IR35X40X25		35	40	25
	IR35X40X25.5		35	40	25.5
	IR35X40X30	67.9	35	40	30
	IR35X40X30.5		35	40	30.5
	IR35X40X34		35	40	34
	IR35X40X40		35	40	40
	• IR35X42X20	63.9	35	42	20
	IR35X42X20.5	66	35	42	20.5
	• IR35X42X21	67.7	35	42	21
	• IR35X42X23	74	35	42	23
	IR35X42X36	117	35	42	36
	IR35X42X37		35	42	37
	IR35X43X22	82	35	43	22
	IR35X65X28		35	65	28
36	IR36.2X50X25.5		36	50	25.5
38	IR38X43X20	48.1	38	43	20
	IR38X43X30	73.6	38	43	30
	IR38X45X46		38	45	46
40	IR40X45X12		40	45	12
	IR40X45X16		40	45	16
	IR40X45X16.5	41.4	40	45	16.5
	IR40X45X17	42.5	40	45	17
	IR40X45X20	50.5	40	45	20
	IR40X45X20.5	52.5	40	45	20.5
	IR40X45X22.5		40	45	22.5
	IR40X45X25		40	45	25
	IR40X45X25.5		40	45	25.5
	IR40X45X30	77.1	40	45	30
	IR40X45X30.5		40	45	30.5
	IR40X45X34		40	45	34
	IR40X45X40		40	45	40
	IR40X45X40.5		40	45	40.5
	IR40X45X40ASI		40	45	40
	IR40X48X22		40	48	22
	• IR40X48X23		40	48	23
	IR40X48X30		40	48	30
	IR40X48X40		40	48	40
	IR40X49.5X40		40	49.5	40
	IR40X50X20.5		40	50	20.5
	• IR40X50X20		40	50	20
	IR40X50X22		40	50	22
	IR40X50X35		40	50	35
	IR40X55X17		40	55	17
42	IR42X47X20		42	47	20
42	IR42X47X30		42	47	30
44	IR44X52X32		44	52	32
45	IR45X50X14		45	50	14
	IR45X50X15.5		45	50	15.5
	IR45X50X20		45	50	20
	IR45X50X20.5		45	50	20.5
	IR45X50X25		45	50	25
	IR45X50X25.5		45	50	25.5
	IR45X50X26		45	50	26
	IR45X50X30.5		45	50	30.5
	IR45X50X35		45	50	35
	IR45X50X40		45	50	40
	IR45X50X40.5		45	50	40.5
	IR45X50X45.5		45	50	45.5
	IR45X52X22		45	52	22
	• IR45X52X23		45	52	23
	IR45X52X40		45	52	40
	• IR45X55X20		45	55	20
	IR45X55X22		45	55	22
	IR45X55X40		45	55	40
45.2	IR45.2X58X36		42.5	58	36
47	IR47X60X35		47	60	35
48	IR48X55X20		48	55	20
50	IR50X55X17		50	55	17
	• IR50X55X20		50	55	20
	IR50X55X20.5		50	55	20.5
	IR50X55X25		50	55	25
	IR50X55X25.5		50	55	25.5
	IR50X55X26		50	55	26
	IR50X55X35	112	50	55	35
	IR50X55X40		50	55	40
	IR50X55X42		50	55	42
	IR50X55X45.5		50	55	45.5
	IR50X55X20		50	55.3	20.3
	IR50X56X21.5		50	56	21.5
	IR50X58X16		50	58	16
	IR50X58X22	115	50	58	22
	• IR50X58X23	119	50	58	23
	IR50X58X40	209	50	58	40
	• IR50X60X20	129	50	60	20
	IR50X60X25	163	50	60	25
	IR50X60X25.5		50	60	25.5
	IR50X60X28	183	50	60	28
	IR50X60X50		50	60	50
	IR50X60X50.5		50	60	50.5
51	IR51X63X52		51	63	52
54	IR54X60X25		54	60	25
55	IR55X60X12		55	60	12
	IR55X60X25	86	55	60	25
	IR55X60X32.5EGS		55	60	32.5
	IR55X60X35	121	55	60	35
	IR55X60X36EGS		55	60	36
	IR55X63X25	141	55	63	25
	IR55X63X45	256	55	63	45
	IR55X63X65.25		55	63	65.25
	IR55X65X20		55	65	20
	IR55X65X25		55	65	25
	IR55X65X28	198	55	65	28
	IR55X65X30		55	65	30
	IR55X65X60		55	65	60
	IR55X65X90		55	65	90
	IR55X65X110		55	65	110
60	IR60X68X25	152	60	68	25
	IR60X68X35	213	60	68	35
	IR60X68X45	275	60	68	45
	IR60X70X30		60	70	30
	IR60X70X25	195	60	70	25
	IR60X70X28	216	60	70	28
	IR60X70X30		60	70	30
	IR60X70X35		60	70	35
	IR60X70X60		60	70	60
	IR60X73X35		60	73	35
65	IR65X72X25	142	65	72	25
	IR65X72X45	259	65	72	45
	IR65X73X25	164	65	73	25
	IR65X75X28	230	65	75	28
	IR65X75X30		65	75	30
70	IR70X80X25	224	70	80	25
	IR70X80X30	267	70	80	30
	IR70X80X54	487	70	80	54
	IR70X80X56	506	70	80	56
	IR70X80X60		70	80	60
	IR70X80X80		70	80	80
73	IR73X80X35		73	80	35
75	IR75X85X35	238	75	85	25
	IR75X85X25	287	75	85	30
	IR75X85X54	520	75	85	54
78	IR78X90X80		78	90	80
80	IR80X90X25	254	80	90	25
	IR80X90X30	304	80	90	30
	IR80X90X35	355	80	90	35
	IR80X90X54	550	80	90	54
	IR80X92X50		80	92	50
85	IR85X95X26	280	85	95	26
	IR85X95X30		85	95	30
	IR85X100X35	580	85	100	35
	IR85X95X36		85	95	36
	IR85X100X63	100	85	100	63
88	IR88X100X30		88	100	30
90	IR90X100X26	294	90	100	26
	IR90X100X30	340	90	100	30
	IR90X105X36	610	90	105	35
	IR90X105X63	1110	90	105	63
	IR90X110X35		90	110	56
95	IR95X105X26	313	95	105	26
130	IRl30X150X50	1690	130	150	50
130	IRl30X150X60		130	150	60
140	IRl40X150X40		140	150	40
	IRl40X160X50	1800	140	160	50
	IRl40X160X50A		140	160	50
150	IRl50X165X40	1120	150	165	40
	IRl50X165X50		150	165	50
	IRl50X170X60		150	170	60
160	IRl60X175X70	1200	160	175	70
170	IRl70X180X45		170	180	45
170	IRl70X185X45		170	185	45
220	IR220X240X50		220	240	50
