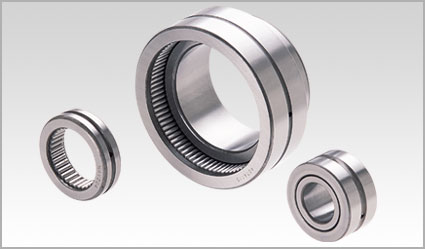

Prodcut Name:RNAV Series

Code: 1368603555 Price:0

Product Description

structure

Shaft Diameter	Bearing Designation		Mass Approx	Boundary Dimensions			Basic Load Rating		Limiting Speed
	Current Code	riginal Code		Fw	D	C	Dynamic	Static	Oil
mm			g	mm			N		rpm

20	RNAV4902	4084902E		20	28	13	10800	29800	4500
21.87	RNAV4002	4084102	45	21.87	32	17
22	RNAV4903	4084903E		22	30	13
24.3	RNAV4003	4084103	62	24.3	35	18	17900	37900	4300
25	RNAV4904	4084904E		25	37	17
28.7	RNAV4004	4084104	114	28.7	42	22	28150	60900	3900
30	RNAV4905	4084905E		30	42	17
33.5	RNAV4005	4084105	129	33.5	47	22	33800	70800	3700
35	RNAV4906	4084906E		35	47	17
40.1	RNAV4006	4084106	193	40.1	55	25	49900	96500	3500
42	RNAV4907	4084907E		42	55	20
45.9	RNAV4007	4084107	259	45.9	62	27	47600	122800	3100
48	RNAV4908	4084908E		48	62	22
51.6	RNAV4008	4084108	304	51.6	68	28	49900	137900	2700
52	RNAV4909	4084909E		52	68	22
57.4	RNAV4009	4084109	390	57.4	75	30	52500	153500	2600
58	RNAV4910	4084910E		58	72	22
62.1	RNAV4010	4084110	426	62.1	80	30	55700	166000	2500
69.8	RNAV4011	4084111	645	69.8	90	35	68500	225800	2300
68	RNAV4912	4084912E		68	85	25
74.6	RNAV4012	4084112	677	74.6	95	35	75400	239000	2100
80.3	RNAV4013	4084113	692	80.3	100	35	79500	256900	1900
80	RNAV4914	4084914E		80	100	30
88	RNAV4014	4084114	950	88	110	40	98800	354900	1700
93.7	RNAV4015	4084115	1000	92.7	115	45	101800	372900	1600
90	RNAV4916	4084916E		90	110	30
100.3	RNAV4016	4084116	1400	100.3	125	45	102900	373500	1500
104.8	RNAV4017	4084117	1540	104.8	130	45	103800	374800	1400
105	RNAV4918	4084918E		105	125	35
110	RNAV4919	4084919E		110	130	35
115	RNAV4920	4084920E		115	140	40
