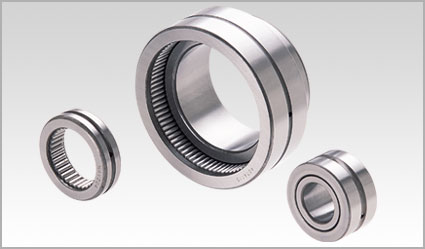

Prodcut Name:NAV Series

Code: 1368603519 Price:0

Product Description

structure

Shaft Diameter	Bearing Designation		Mass Approx	Boundary Dimensions			Basic Load Rating		Limiting Speed
	Current Code	Original Code		d	D	C	Dynamic	Static	Oil
mm			g	mm			N		rpm

15	NAV4902	4074902E		15	28	13
	NAV4002	4074102	76	15	32	17	10800	29800	4500
		74802	100	15	36	24.5	8900	11200	4400
17	NAV4903	4074903E		17	30	13
	NAV4003	4074103	98	17	35	18	12000	17000	3400
		74703	126	17	35	24.5	8700	10800	4200
20	NAV4904	4074904E		20	37	17
	NAV4004	4074104	175	20	42	22	14500	29600	3000
	NAV203620.5			20	36	20.5
	NAV204			20	47	14
24	NAV24668.1			24	66	8.1
25	NAV4905	4074905E		25	42	17
	NAV4005	4074105	201	25	47	22	23000	34600	2600
	NAV205			25	52	15
30	NAV4906	4074906E		30	47	17
30	NAV4006	4074106	311	30	55	25	25800	46900	2000
35	NAV4907	4074907E		35	55	20
35	NAV4007	4074107	418	35	62	27	33000	59900	1800
40	NAV4908	4074908E		40	62	22
40	NAV4008	4074108	498	40	68	28	35900	67000	1700
45	NAV4909	4074909E		45	68	22
45	NAV4009	4074109	637	45	75	30	41000	74000	1500
50	NAV4910	4074910E		50	72	22
50	NAV4010	4074110	702	50	80	30	42800	88900	1400
55	NAV4911	4074911	1030	55	90	35	48900	109000	1300
60	NAV4912	4074912E		60	85	25
60	NAV4012	4074112	1125	60	95	35	50700	116000	1100
65	NAV4013	4074113	1200	65	100	35	59800	126000	1000
70	NAV4914	4074914E		70	100	30
70	NAV4014	4074114	1700	70	110	40	72400	155000	950
75	NAV4015	4074115	1810	75	115	40	7280	1800	900
80	NAV4916	4074916E		80	110	30
80	NAV4016	4074116	2470	80	125	45	76000	195000	850
85	NAV4017	4074117	2580	85	130	45	74000	192000	800
90	NAV4918	4074918E	1507	90	125	35
95	NAV4919	4074919E	1537	95	130	35
100	NAV4920	4074920E	2240	100	140	40
160	NAV4832	4074832		160	200	40
190	NAVl90X245X42			190	245	42
