Location:Index--->Product Center >> Drawn cup needle roller clutch >> FC FCB RC RCB

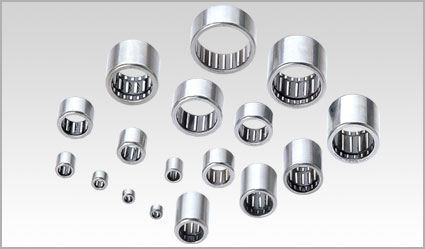

Prodcut Name:FC FCB RC RCB

Code: 1368597196 Price:0

Product Description

FC,FCB							RC,RCB
轴承型号Bearing Designation	近似重量 Mass Approx	主要尺寸 Designation					轴承型号Bearing Designation	近似重量 Mass Approx	主要尺寸 Designation
	近似重量 Mass Approx	Fw	D	C	转动力矩Torgue Ma			近似重量 Mass Approx	Fw	D	C	转动力矩Torgue Ma
	g	mm			Nm			g	mm			Nm
FC4K	1	4	8	6	0.34		RC040708	3.5	6.35	11.112	12.7	1.9
FC6	3	6	10	12	1.76		RC040708-FS	3.5	6.35	11.112	12.7	1.9
FC6K	3	6	10	12	1.76		RC061008	4.7	9.525	15.875	12.7	4.83
FC8	4	8	14	12	5.3		RC061008-FC	4.7	9.525	15.875	12.7	4.83
FCL8K	3.5	8	12	12	5		RC081208	9.2	12.7	19.05	12.7	7.9
FC10	4.8	10	16	12	6		RC081208-FS	9.2	12.7	19.05	12.7	7.9
FCL10K	4	10	14	12	5.3		RC101410	14.5	15.875	22.225	15.88	15.4
FC12	11	12	18	16	12.2		RC101410-FC	14.5	15.875	22.225	15.88	15.4
FC14K	13	14	20	16	17.3		RC121610	17	19.05	25.4	15.88	20.9
FC16	14	16	22	16	20.5		RC121610-FS	17	19.05	25.4	15.88	20.9
FC20	17	20	26	16	28.5		RC162110	16.2	25.4	33.338	15.88	45
FC25	30	25	32	20	66		RC162110-FC	16.2	25.4	33.338	15.88	45
FC30	36	30	37	20	90		RCB061014	12	9.525	15.875	22.22	4.83
FC35	40	35	42	20	121		RCB061014-FS	12	9.525	15.875	22.22	4.83
FCB8	10	14	14	20	5		RCB081214	16	12.7	19.05	22.22	7.9
FCB10	15	16	16	20	10		RCB081214-FC	16	12.7	19.05	22.22	7.9
FCB12	18	18	18	26	12.2		RCB101416	21.3	15.875	22.225	25.4	15.4
FCB16	22	22	22	26	20.5		RCB101416-FS	21.3	15.875	22.225	25.4	15.4
FCB20	27	26	26	26	28.5		RCB121616	26.5	19.05	25.4	25.4	20.9
FCB25	44	32	32	30	66		RCB121616-FC	26.5	19.05	25.4	25.4	20.9
FCB30	51	37	37	30	90		RCB162117	44.8	25.4	33.338	26.99	45
FCB35	58	42	42	30	121		RCB162117-FS	44.8	25.4	33.338	26.99	45
