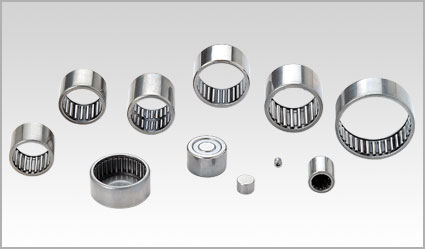

Prodcut Name:F FH MF MFH FY MFY Series

Code: 1368596139 Price:0

Product Description

Shaft Diameter	Bearing Designation		Mass Approx	Boundary Dimensions			Basi cLoad Rating		Limiting Speed
	Current Code	Original Code		Fw	D	C	Dynamic	Static	Oil
mm			g	mm			N		rpm

6	F-0608	30941/6	2.5	6	10	8	3080	5800	12000
6.35	F6.35X11.11X11.13	B-47	3.2	6.35	11.11	11.13	3500	6050	12000
6.35	MF6.35X11.11X11.13	M-471	4.1	6.35	11.11	11.13	3500	6050	12000
8	F-0810	50941/8	3.7	8	12	10	4050	7150	13000
	FH-0810	941/8	7	8	14	10	5200	7150	7400
	FH-0812	942/8	9	8	14	12	4550	7150	7400
9	F-0910	50941/9	4	9	13	10	4900	8050	12000
	F-091510	941/9	6	9	15	10	8000	11500	7100
	F-091513	942/9	8	9	15	13	8560	12800	7100
9.52	F-9.52X14.29X12.7	B-68	7.5	9.52	14.29	12.70	9000	13300	7100
10	F-1010	50941/0	4.2	10	14	10	5700	9350	11000
	FH-1010	941/0	6.5	10	16	10	6350	10800	11000
	F-101615	942/10	12	10	16	15	6890	11500	7100
		943/10	943/10	10	16	17	6500	11000	7000
12	F-1212	60941/12	6	12	16	12	6380	10900	7100
	F-121712	941/12	8	12	17	12	8400	11900	7100
	F-121715	942/12	10.5	12	17	15	9000	12500	7100
	F-121718	943/12	13	12	17	18	9800	13500	7100
15	F-15X20X12	941/5	10	15	20	12	8400	11900	7100
	F-15X20X16	942/15	13.6	15	20	16	9500	12800	7100
	F-15X20X20	943/15	17.2	15	20	20	10500	16000	7100
	F-15X20X20	Y152020	20	15	20	20	10500	16000	7100
	F-1512	30941/5	12	15	21	12	9700	15900	8100
16	F-1616	50941/16	17	16	22	16	14100	25900	7700
17	F-1712	30941/7	13	17	23	12	10600	21600	7300
	F-1714	941/17	15	17	23	14	12500	22500	7300
	F-1718	942/17	21	17	23	18	13800	24800	7300
	F-1722	943/17	943/17	17	23	22	13500	24000	7100
18	F-1816	50941/8	18	18	24	16	15000	29100	6900
20	F-2014	941/20	17	20	26	14	15800	40500	6900
	F-2020	942/20	26	20	26	20	18800	42500	6900
	F-20X26X25	943/20	33	20	26	25	20500	35500	6300
22	F-2212	30941/22	14	22	28	12	9000	13300	5800
	F-2216	50941/22	22	22	28	16	17000	33000	5800
	F-2220	70941/22	29	22	28	20	20300	47200	5800
25	F-2516	941/25	28	25	32	16	18700	37900	5100
	F-2522	942/25	40	25	32	22	11000	16500	5100
	F-25X32X25	943/25	43	25	32	25	11500	18500	5100
	F-25X33X08	Y253308	16.7	25	33	8	12200	16800	4300
	F-2512	20941/25	17	25	32	12	5250	6000	5100
	F-2520	60941/25	43	25	32	20	22800	46000	5100
28	F-2820	60941/28	118	28	35	20	25700	58300	4600
	F-2812	20941/28	31.7	28	35	12	16500	38600	4600
	F-2816	40941/28	36	28	35	16	20200	42900	4600
30	F-3020	60941/30	42	30	37	20	26800	62500	4300
	MF-3020	65941/30	48	30	37	20	26800	62500	4300
	F-30X38X16	941/30	37.5	30	38	16	25500	57500	4600
	F-30X38X24	942/30	37.5	30	38	24	28800	64500	4300
	F-30X38X32	943/30	81.5	30	38	32	34500	78900	4300
	F-3014	30941/30	37	30	37	14	19600	41200	4600
	F-3016	4094/30	40	30	37	16	21700	46500	4300
	F-3026		58.5	30	37	26	35000	74000	4300
32	F-32X39X32	943/32		32	39	32	35000	74000	4300
32	F-3216	40941/32	35	32	39	16	25800	61500	4300
35	F-3520	60941/35	49	35	42	20	24000	69100	3700
	F-35X43X16	941/35	41	35	43	16	23500	68000	3700
	F-35X43X25	942/35	72	35	43	25	38700	86200	3200
	F-35X43X32	943/35	90	35	43	32	40500	98700	3200
	F-3512	20941/35	36	35	42	12	19000	59000	3700
40	F-4020	60941/40	56	40	47	20	30300	52600	3300
	FH-4032	942/40	88	40	50	32	42500	108000	2600
	MFH-4032	86942/40	95	40	50	32	42500	108000	2600
	FH-40X50X38	943/40	105	40	50	38	44800	118500	2600
	F-4016	40941/40	51	40	47	16	26500	62000	3300
45	F-4520		62	45	52	20	30400	30400	2900
	FH45X55X38	943/45	140	45	55	38	45800	45800	2900
	F-4516	40941/45	49	45	52	16	23800	65900	2900
50	F-5020	50941/50	78	50	58	20	35800	98000	2600
50	FH-50X60X38	943/50	145	50	60	38	50500	145800	2600
55	F-5520	50941/55	97	55	63	20	39500	102000	2600
60	F-60X68X38	943/60	185	60	68	38	50200	145000	2600
