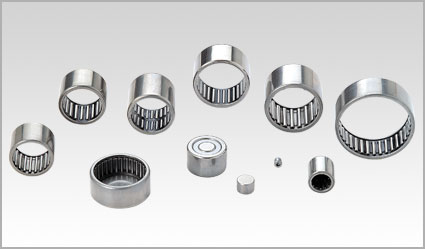

Prodcut Name:SCH Series

Code: 1368595955 Price:0

Product Description

structure

Shaft Diameter	Bearing Designation		Mass Approx	Boundary Dimensions			Basi cLoad Rating		Limiting Speed
	Current Code	Original Code		Fw	D	C	Dynamic	Static	Oil
mm			g	mm			N		rpm

12.7	SCH 87		0.009	12.7	19.05	11.13
14.29	SCH 910		0.013	14.29	20.64	15.88
14.29	SCH 912		0.017	14.29	20.64	19.05
15.875	SCH 108		0.013	15.875	22.225	12.7
15.875	SCH 1012		0.019	15.875	22.225	19.05
22.225	SCH 1412		0.032	22.225	30.162	19.05
	SCH 1413			22.225	30.162	20.64
	SCH 1413P			22.225	30.162	20.64
	SCH 1416PP			22.225	30.162	25.4
	SCH 1416		0.043	22.225	30.162	25.4
25.4	SCH 1612		0.036	25.4	33.338	19.05
	SCH 1614P			25.4	33.338	22.22
	SCH 1616		0.047	25.4	33.338	25.4
28.575	SCH 1812		0.048	28.575	38.1	19.05
28.575	SCH 1816		0.063	28.575	38.1	15.4
31.75	SCH 2016		0.071	31.75	41.28	25.4
34.925	SCH 2213P			34.925	44.45	20.62
9.525	BCH 68		0.0082	9.525	15.875	12.7	500	480	40000
17.02	BCH 06604			17.02	23.83	17.53
31.75	BCH 2020		0.0815	31.75	41.275	31.75	4080	7100	12000
