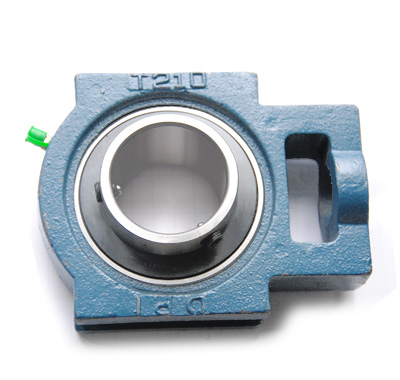

Prodcut Name:UCT300

Code: 1369091632 Price:0

Product Description

Bearing Unit NO.	Shaft Dia d		Dimensions(mm)															Bearing No.	Housing No.	Housing Wt (kg)
Bearing Unit NO.	(in)	(mm)	o	g	p	q	s	b	k	e	a	w	j	l	h	Bi	n	Bearing No.	Housing No.	Housing Wt (kg)
UCT305-14 UCT305-15 UCT305-16 UCT305	7/8 15/16 1	25	16	12	62	36	26	65	12	80	89	122	36	26	76	38	15	UC305-14 UC305-15 UC305-16 UC305	T305	1.05


UCT306-18 UCT306-19 UCT306	1-1/8 1-3/16	30	18	14	70	41	28	74	16	90	100	137	41	28	85	43	17	UC306-18 UC306-19 UC306	T306	1.24
UCT307-20 UCT307-21 UCT307-22 UCT307-23 UCT307	1-1/4 1-5/16 1-3/8 1-7/16	35	20	15	75	45	30	80	16	100	111	150	45	32	94	48	19	UC307-20 UC307-21 UC307-22 UC307-23 UC307	T307	1.69
UCT308-24 UCT308-25 UCT308	1-1/2 1-9/16	40	22	17	83	50	32	89	18	112	124	162	50	34	100	52	19	UC308-24 UC308-25 UC308	T308	2.04
UCT309-26 UCT309-27 UCT309-28 UCT309	1-5/8 1-11/16 1-3/4	45	24	18	90	55	34	97	18	125	138	178	55	38	110	57	22	UC309-26 UC309-27 UC309-28 UC309	T309	2.72
UCT310-30 UCT310-31 UCT310	1-7/8 1-15/16	50	27	20	98	61	37	106	20	140	151	191	61	40	117	61	22	UC310-30 UC310-31 UC310	T310	3.35
UCT311-32 UCT311-34 UCT311-35 UCT311	2 2-1/8 2-3/16	55	29	21	105	66	39	115	22	150	163	207	66	44	127	66	25	UC311-32 UC311-34 UC311-35 UC311	T311	4.33
UCT312-36 UCT312-38 UCT312-39 UCT312	2-1/4 2-3/8 2-7/16	60	31	23	113	71	41	123	22	160	178	220	71	46	135	71	26	UC312-36 UC312-38 UC312-39 UC312	T312	5
UCT313-40 UCT313	2-1/2	65	32	25	116	71	43	134	26	170	190	238	80	50	146	75	30	UC313-40 UC313	T313	6
UCT314-44 UCT314	2-3/4	70	36	25	130	85	46	140	26	180	202	252	90	52	155	78	33	UC314-44 UC314	T314	7.05
UCT315-48 UCT315	3	75	36	25	132	85	46	150	26	192	216	262	90	55	160	82	32	UC315-48 UC315	T315	9.28
UCT316-50 UCT316	3-1/8	80	42	28	150	98	53	160	30	204	230	282	102	60	174	86	34	UC316-50 UC316	T316	10.03
UCT317-52 UCT317	3-1/4	85	42	30	152	98	53	170	32	214	240	298	102	64	183	96	40	UC317-52 UC317	T317	13.3
UCT318-56 UCT318	3-1/2	90	46	30	160	106	57	175	32	228	255	312	110	66	192	96	40	UC318-56 UC318	T318	14.1
UCT319-60 UCT319	3-3/4	95	46	31	165	106	57	180	35	240	270	322	110	72	197	103	41	UC319-60 UC319	T319	16.3
UCT320-64 UCT320	4	100	48	32	175	115	59	200	35	260	290	345	120	75	210	108	42	UC320-64 UC320	T320	21.2
UCT321		105	48	32	175	115	59	200	35	260	290	345	120	75	210	112	44	UC321	T321	19.8
UCT322		110	52	38	185	125	65	215	38	285	320	385	130	80	235	117	46	UC322	T322	25.7
UCT324		120	60	42	210	140	70	230	45	320	355	432	140	90	267	126	51	UC324	T324	36.5
UCT326		130	65	45	220	150	75	240	50	350	385	465	150	100	285	135	54	UC326	T326	46
UCT328		140	70	50	230	160	80	255	50	380	415	515	155	100	315	145	59	UC328	T328	55.5
