Prodcut Name:FM Series

Code: 1368945279 Price:0

Product Description

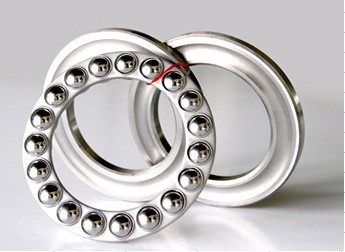

ball thrust bearings

Bearing NO.	d	D	H	Cr	C0r	Weight
Bearing NO.	mm	mm	mm	kN	kN	kg
F3-8M	3	8	3.5	0.6	0.48
F4-9M	4	9	4	0.8	0.52
F4-10M	4	10	4	0.658	0.58
F5-10M	5	10	4	0.95	0.83
F5-11M	5	11	4.5	0.988	0.88
F5-12M	5	12	4	0.988	0.88
F6-12M	6	12	4.5	1.6	1.255
F6-14M	6	14	5	1.8	1.588
F7-13M	7	13	4.5	1.422	1.255
F7-15M	7	15	5	2.2	2
F7-17M	7	17	6	2.6	2.256
F8-16M	8	16	5	2.5	3
F8-19M	8	19	7	3.452	3
F9-20M	9	20	7	3.356	2.999
F10-18M	10	18	5.5	2.23	2.721
