Location:Index--->Product Center >> 16000 Series >> 16000 Series

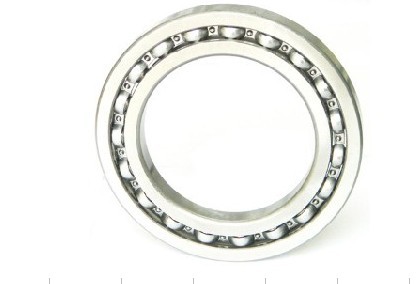

Prodcut Name:16000 Series

Code: 1368941460 Price:0

Product Description

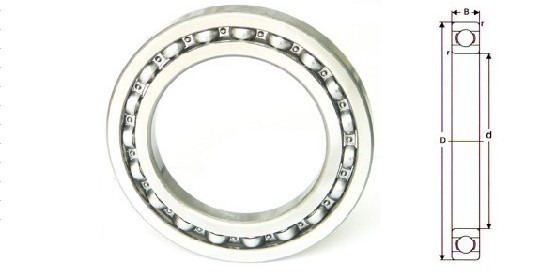

Bearing	Bore	O.D.	Width	Chamfer		Load Rating		Ball Complement		Maxrunout speed		Weight
No .	d	D	B	r/min		Load Rating		Ball Complement		Maxrunout speed		Weight
	mm	mm	mm	mm		Dynamic	Static	No.	Size	Grease	Oil	KG
						Cr	Co	No.	mm	r/min	r/min	KG
16001	12	28	7	0.3		5.1	2.4	8	4.763	20000	26000	0.019
16002	15	32	8	0.3		5.6	2.8	9	4.763	19000	24000	0.0252
16003	17	35	8	0.3		6	3.3	10	4.763	18000	22000	0.03
16004	20	42	8	0.3		7.9	4.5	10	5.556	16000	19000	0.048
16005	25	47	8	0.3		8.8	5.6	12	5.556	13000	17000	0.059
16006	30	55	9	0.3		11.2	7.4	12	6.35	11000	14000	0.0.85
16007	35	62	9	0.3		12.2	8.8	14	6.35	95000	12000	0.107
16008	40	68	9	0.3		12.6	9.8	15	6.35	9000	11000	0.13
16009	45	75	10	0.3		15.6	12.2	15	7.144	8000	10000	0.167
16010	50	80	10	0.3		16.1	13.1	15	7.144	8000	95000	0.175
