Prodcut Name:6300 Series

Code: 1368941254 Price:0

Product Description

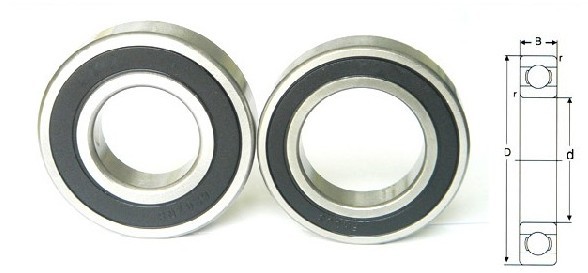

Bearing	main dimension(mm)					basic load rating(kgf)		rotational speed(rpm)			Weight
No .	Bore	O.D.	Width	Chamfer		Dynamic	Static	Greese		Oil	(KG)
	d	D	B	r/min		Ce	Co	Z.ZZ	RS.2RS	Z
								RU.2RU	RS.2RS	Z
6300	10	35	11	0.6		825	350	22000	13000	27000	0.053
6301	12	37	12	1		990	425	20000	12000	25000	0.06
6302	15	42	13	1		1160	555	17000	10000	20000	0.082
6303	17	47	14	1		1390	675	15000	9100	18000	0.115
6304	20	52	15	1.1		1620	800	14000	8300	17000	0.144
6305	25	62	17	1.1		2100	1150	11000	6700	13000	0.232
6306	30	72	19	1.1		2720	1530	9600	5800	12000	0.346
6307	35	80	21	1.5		3400	1960	8500	5100	10000	0.457
6308	40	90	23	1.5		4150	2450	7700	4600	9200	0.633
6309	45	100	25	1.5		4980	3010	6800	4100	8100	0.833
6310	50	110	27	2		6320	3900	6100	3600	7300	1.07
6311	55	120	29	2		7300	4580	5600	3300	6700	1.37
6312	60	130	31	2.1		8350	5320	5200	3100	6200	1.7
6313	65	140	33	2.1		9450	6110	4800	2900	5800	2.08
6314	70	150	35	2.1		10600	6960	4500	2700	5400	2.52
6315	75	160	37	2.1		11600	7870	4200	2500	5000	3.02
6316	80	170	39	2.1		12500	8840	3900	2400	4700	3.59
6317	85	180	41	3		13500	9870	3700	2200	4400	4.23
6318	90	190	43	3		14500	10900	3500	2100	4200	4.91
6319	95	200	45	3		15600	12100	3300	2000	4000	5.67
6320	100	215	47	3		17700	14400	3000	1800	3600	7
6321	105	225	49	3		18700	15700	2900	1800	3500	8.05
6322	110	240	50	3		20900	18300	2700	1600	3200	9.54
6324	120	260	55	3		21100	18800	2500	-	3000	12.5
6326	130	280	58	4		23400	21800	2300	-	2700	15.1
6328	140	300	62	4		25800	25100	2100	-	2500	19.4
6330	150	320	65	4		28000	29000	1900	-	2300	26.2
6332	160	340	68	4		28300	29200	1800	-	2200	29
