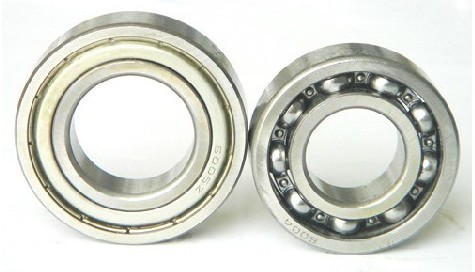

Prodcut Name:6000 Series

Code: 1368941092 Price:0

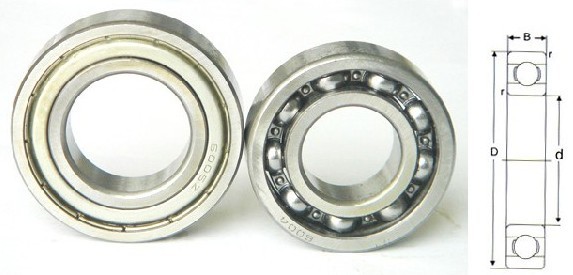

Bearing	main dimension(mm)				basic load rating (kgf)		rotational speed(rpm)			Weight
No .	Bore	O.D.	Width	Chamfer	Dynamic	Static	Greese		Oil	(KG)
	d	D	B	r/min	Ce	Co	Z.ZZ	RS.2RS	Z
							RU.2RU	RS.2RS	Z
6000	10	26	8	0.3	465	200	31000	18000	36000	0.019
6001	12	28	8	0.3	520	245	27000	16000	32000	0.022
6002	15	32	9	0.3	570	290	23000	14000	27000	0.03
6003	17	35	10	0.3	610	335	21000	12000	25000	0.039
6004	20	42	12	0.6	955	515	17000	10000	21000	0.069
6005	25	47	12	0.6	1030	595	15000	9300	18000	0.08
6006	30	55	13	1	1350	840	13000	7800	15000	0.116
6007	35	62	14	1	1630	1050	11000	6700	13000	0.155
6008	40	68	15	1	1710	1170	10000	6100	12000	0.192
6009	45	75	16	1	2140	1540	9200	5500	11000	0.245
6010	50	80	16	1	2220	1690	8400	5000	9900	0.261
6011	55	90	18	1.1	2880	2170	7600	4500	8900	0.385
6012	60	95	18	1.1	3000	2370	7100	4200	8400	0.415
6013	65	100	18	1.1	3110	2570	6600	4000	7800	0.435
6014	70	110	20	1.1	3880	3160	6100	3600	7200	0.602
6015	75	115	20	1.1	4030	3420	5700	3400	6800	0.638
6016	80	125	22	1.1	4860	4060	5300	3200	6300	0.85
6017	85	130	22	1.1	5040	4400	5000	3000	5900	0.89
6018	90	140	24	1.5	5930	5070	4700	2800	5600	1.16
6019	95	145	24	1.5	6160	5500	4400	2700	5200	1.21
6020	100	150	24	1.5	6130	5520	4300	Pre:SL0148, 0149 Series Next:6200 Series Home About Us Products Feedback Contact Us Sitemap Online Service
